SAP 012-108 SAE

Developed to meet the market requirements for reduced weight in combination with demanding operation.

Product Page

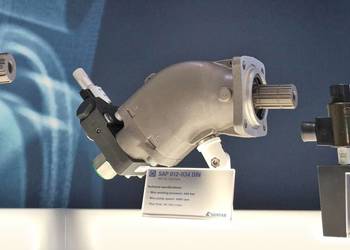

SAP 012-108 SAE covers the displacement range 12-108 cm³/rev. at a maximum pressure up to 400 bar. It is a modern, compact pump which meets the market’s high demands on flow performance, pressure, efficiency and small installation dimensions.

The pump is either mounted directly on the power take-off or on a frame bracket via an intermediate shaft.

BENEFITS OF SAP SAE

Light weight metal casing design

Smooth operation over the entire speed range

Long life due to high demands on material selection, such as bearings, seals, etc

Corrosion free light metal-housing

Less heat generation due to better ability to dissipate heat through housing

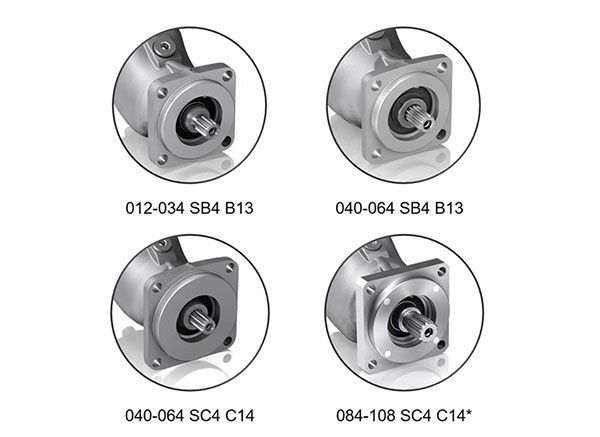

Shafts and flanges

Mounting flange
		012	017	025	034	040	047	056	064	084	108
SB4	SAE B4	X	X	X	X	X	X	X	X	-	-
SC4	SAE C4	-	-	-	-	X	X	X	X	X*	X*

*SAP 084 & 108 with adapter flange for SC4

Shaft
		012	017	025	034	040	047	056	064	084	108
B13*	SAE B 13t	X	X	X	X	X	X	X	X	-	-
C14	SAE C 14t	-	-	-	-	X	X	X	X	X	X

*Only with SB4 mounting flange

- = Not available
X = Standard, preferred

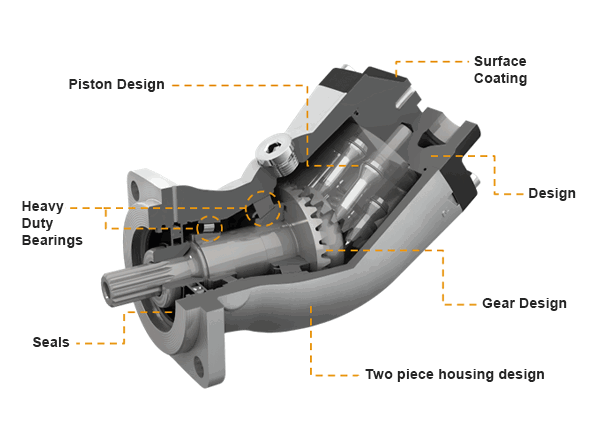

Piston Design
Large number of pistons reduces pulsation creating a smooth flow.
Spherical pistons with 3 rings ensures a high efficiency.

Heavy Duty Bearings
Tapered roller bearings for high load capacity

Seals
Durable for high pressure and high temperature.

Gear Design
Gear transmission offload the pistons from torque transmission.

Surface coating
Improved surface coating than before (better corrosion protection).

Design
Hardened steel on valve surface ensures high durability and high efficiency.

Two piece housing design
Two piece housing design, less leakage points
