SAP 012-108 DIN Optimised
SAP DIN Optimised is a series of light weight casing piston pumps with a fixed displacement for demanding mobile hydraulics. It is variant of the standard SAP series, also suitable for electric motor drives due to the pump’s higher speed properties and lower noise level.
INCREASED SPEED & LOWER NOISE
SAP 012-108 DIN Optimised covers the displacement range 12-108 cm3/rev. at a maximum pressure of 400 bar. It is a modern, compact pump which meets the market´s high demands on flow performance, pressure, efficiency and small installation dimensions. It is either mounted directly on the power take-off or on a frame bracket via an intermediate shaft.
BENEFITS OF SAP OPTIMISED
Less noise than the standard SAP series
Less pulsations in the system
Smooth operation over the entire speed range
Long life due to high demands on materials
Corrosion free light metal-housing
Less heat generation due to better ability to dissipate heat through housing

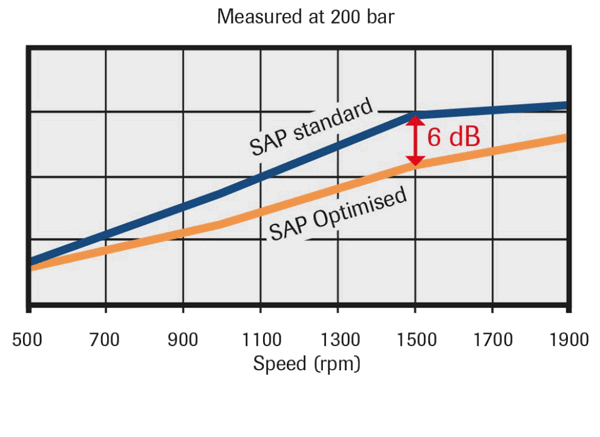

Noise levels compaired to SAP standard pump
The optimised variant gives a more silent operation with higher pump speeds than the standard SAP series. This leads to less pulsations in the system and smoother operation.
It is a speed optimised pump and therefore supplied for either left (L) or right (R) rotation direction.

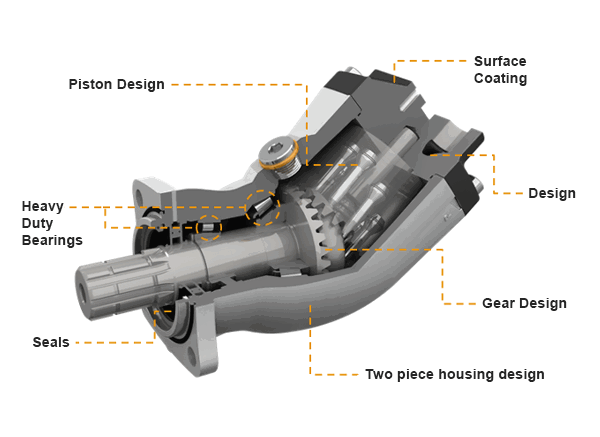

Piston Design
Large number of pistons reduces pulsation creating a smooth flow.
Spherical pistons with 3 rings ensures a high efficiency.
Heavy Duty Bearings
Tapered roller bearings for high load capacity
Seals
Durable for high pressure and high temperature.
Gear Design
Gear transmission offload the pistons from torque transmission.
Surface coating
Improved surface coating than before (better corrosion protection).
Design
Hardened steel on valve surface ensures high durability and high efficiency.
Two piece housing design
Two piece housing design, less leakage points
